Writing your First Simulation¶
Our goal in this tutorial is to start developing a simple grid world simulation with GAMMS. We will extend this example in coming tutorials to introduce the various features of GAMMS as well as flesh out a complex scenario at the end of all the tutorials. The goal of this tutorial is to get you familiar with the basic concepts of GAMMS and how to use it to create a simple simulation.
First, we need to create a project directory. This is where we will store all our simulation files. The project directory can be anywhere on your computer but for keeping things together we will create a directory called gammstutorial in the virtual environment we created in the installation tutorial.
We will be completely working in this directory so make sure you are in the right place. Ensure you have activated the virtual environment before running any files that we create and always be in the gammstutorial directory when running the files. You can check if you are in the right directory by running the following command:
Visualizing a Grid¶
Create a file called game.py in the gammstutorial directory. This file is the entry point for our simulation. Copy the following code into the file:
import time
import gamms
# create a context with PYGAME as the visual engine
ctx = gamms.create_context(vis_engine=gamms.visual.Engine.PYGAME)
graph = ctx.graph.graph # get the graph object from the context
# Create a 1x1 grid
graph.add_node({'id': 0, 'x': 0, 'y': 0}) # add a node to the graph with id 0 and coordinates (0, 0)
graph.add_node({'id': 1, 'x': 100.0, 'y': 0}) # add a node to the graph with id 1 and coordinates (100, 0)
graph.add_node({'id': 2, 'x': 100.0, 'y': 100.0}) # add a node to the graph with id 2 and coordinates (100, 100)
graph.add_node({'id': 3, 'x': 0, 'y': 100.0}) # add a node to the graph with id 3 and coordinates (0, 100)
graph.add_edge({'id': 0, 'source': 0, 'target': 1, 'length': 1.0}) # add an edge to the graph with id 0 from node 0 to node 1
graph.add_edge({'id': 1, 'source': 1, 'target': 2, 'length': 1.0}) # add an edge to the graph with id 1 from node 1 to node 2
graph.add_edge({'id': 2, 'source': 2, 'target': 3, 'length': 1.0}) # add an edge to the graph with id 2 from node 2 to node 3
graph.add_edge({'id': 3, 'source': 3, 'target': 0, 'length': 1.0}) # add an edge to the graph with id 3 from node 3 to node 0
graph.add_edge({'id': 4, 'source': 0, 'target': 3, 'length': 1.0}) # add an edge to the graph with id 4 from node 0 to node 3
graph.add_edge({'id': 5, 'source': 3, 'target': 2, 'length': 1.0}) # add an edge to the graph with id 5 from node 3 to node 2
graph.add_edge({'id': 6, 'source': 2, 'target': 1, 'length': 1.0}) # add an edge to the graph with id 6 from node 2 to node 1
graph.add_edge({'id': 7, 'source': 1, 'target': 0, 'length': 1.0}) # add an edge to the graph with id 7 from node 1 to node 0
# Create the graph visualization
graph_artist = ctx.visual.set_graph_visual(width=1980, height=1080) # set the graph visualization with width 1980 and height 1080
t = time.time() # get the current time
while time.time() - t < 120: # run the loop for 120 seconds
ctx.visual.simulate() # Draw loop for the visual engine
ctx.terminate() # terminate the context
GAMMS uses a context object to manage the simulation. The context object is created using the create_context function. The line below creates a context object with PYGAME as the visual engine. The other option we have is NO_VIS which is used when we do not want to visualize the simulation.
# create a context with PYGAME as the visual engine
ctx = gamms.create_context(vis_engine=gamms.visual.Engine.PYGAME)
The actual graph object is created inside the context object. Without going into the details, there is a graph manager ctx.graph that manages the graph object ctx.graph.graph. The graph object is a directed graph that allows us to add nodes and edges to the graph. We use the add_node and add_edge methods to add nodes and edges to the graph. Each node and edge has an id and some attributes. The id is used to identify the node or edge in the graph. The attributes are used to store information about the node or edge. In this case, we are using the x and y attributes to store the coordinates of the node in the grid. The length attribute is used to store the length of the edge. The length attribute is not directly used in this example andd we will come back to it later. However, it needs to be defined to add the edge to the graph. The source and target attributes are used the ids of the source and target nodes of the edge.
Once we have added the nodes and edges to the graph, we need to create the graph visualization.
graph_artist = ctx.visual.set_graph_visual(width=1980, height=1080) # set the graph visualization with width 1980 and height 1080
We do this using the set_graph_visual method of the visual engine. We pass extra parameters to the method to set the width and height of the visualization but these are optional. The default values are 1280 and 720 respectively. The set_graph_visual method returns a graph artist object that is used to draw the graph. We will discuss more about artists in later tutorials. The good part is, we do not need to worry about handling the drawing of the graph or what exactly the artist is doing to get started.
The last part of the code is a loop that runs for 120 seconds. The loop calls the simulate method of the visual engine to draw the graph. You will now see a window with the square. You can scroll the mouse to zoom in and out of the graph, and use the WASD keys to move around the graph. The simulation will run for 120 seconds and then exit automatically.

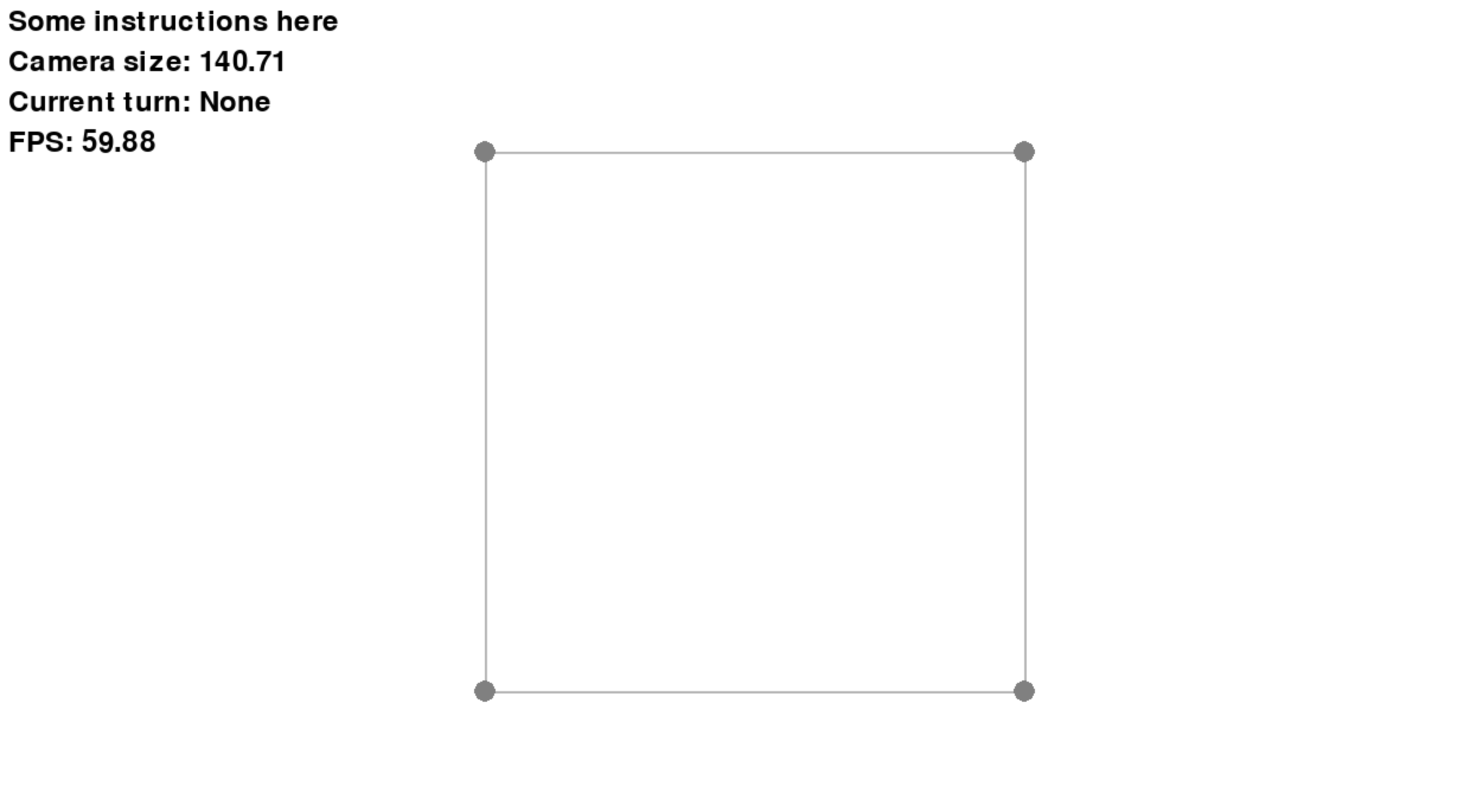

A simple 2x2 square grid visualization shown in the GAMMS window
Before moving to the next part, let's make a bigger grid and make it an n x n grid. We will create a function that will create a grid of size n x n and add it to the graph. The function will take the size of the grid as an argument and create the nodes and edges for the grid. The function will be called create_grid and will look like this:
def create_grid(graph, n):
edge_count = 0 # initialize the edge count to 0
for i in range(n):
for j in range(n):
# add a node to the graph with id i * n + j and coordinates (i, j)
graph.add_node({'id': i * n + j, 'x': i * 100.0, 'y': j * 100.0})
if i > 0:
# add an edge to the graph from node (i - 1) * n + j to node i * n + j
graph.add_edge({'id': edge_count, 'source': (i - 1) * n + j, 'target': i * n + j, 'length': 1.0})
# add an edge to the graph from node i * n + j to node (i - 1) * n + j
graph.add_edge({'id': edge_count + 1, 'source': i * n + j, 'target': (i - 1) * n + j, 'length': 1.0})
edge_count += 2 # increment the edge count by 2
if j > 0:
# add an edge to the graph from node i * n + (j - 1) to node i * n + j
graph.add_edge({'id': edge_count, 'source': i * n + (j - 1), 'target': i * n + j, 'length': 1.0})
# add an edge to the graph from node i * n + j to node i * n + (j - 1)
graph.add_edge({'id': edge_count + 1, 'source': i * n + j, 'target': i * n + (j - 1), 'length': 1.0})
edge_count += 2 # increment the edge count by 2
It is usually a good idea to separate out the parameters from the code so that we can easily change them later. We will create a file called config.py in the gammstutorial directory and add the parameters to this file. The config.py file will look like this:
import gamms
VIS_ENGINE = gamms.visual.Engine.PYGAME # visual engine to use
GRID_SIZE = 5 # size of the grid
SIM_TIME = 120 # time to run the simulation in seconds
graph_vis_config = {
'width': 1980, # width of the graph visualization
'height': 1080, # height of the graph visualization
}
We have not only added the grid size, but also some other constants or configurations that we had hardcoded in the game.py file. The final game.py file will look like this:
import time
import gamms
import config
ctx = gamms.create_context(vis_engine=config.VIS_ENGINE) # create a context with PYGAME as the visual engine
graph = ctx.graph.graph # get the graph object from the context
def create_grid(graph, n):
edge_count = 0 # initialize the edge count to 0
for i in range(n):
for j in range(n):
# add a node to the graph with id i * n + j and coordinates (i, j)
graph.add_node({'id': i * n + j, 'x': i * 100.0, 'y': j * 100.0})
if i > 0:
# add an edge to the graph from node (i - 1) * n + j to node i * n + j
graph.add_edge({'id': edge_count, 'source': (i - 1) * n + j, 'target': i * n + j, 'length': 1.0})
# add an edge to the graph from node i * n + j to node (i - 1) * n + j
graph.add_edge({'id': edge_count + 1, 'source': i * n + j, 'target': (i - 1) * n + j, 'length': 1.0})
edge_count += 2 # increment the edge count by 2
if j > 0:
# add an edge to the graph from node i * n + (j - 1) to node i * n + j
graph.add_edge({'id': edge_count, 'source': i * n + (j - 1), 'target': i * n + j, 'length': 1.0})
# add an edge to the graph from node i * n + j to node i * n + (j - 1)
graph.add_edge({'id': edge_count + 1, 'source': i * n + j, 'target': i * n + (j - 1), 'length': 1.0})
edge_count += 2 # increment the edge count by 2
create_grid(graph, config.GRID_SIZE)
# Create the graph visualization
graph_artist = ctx.visual.set_graph_visual(**config.graph_vis_config) # set the graph visualization with width 1980 and height 1080
t = time.time() # get the current time
while time.time() - t < config.SIM_TIME: # run the loop for 120 seconds
ctx.visual.simulate() # Draw loop for the visual engine
ctx.terminate() # terminate the context

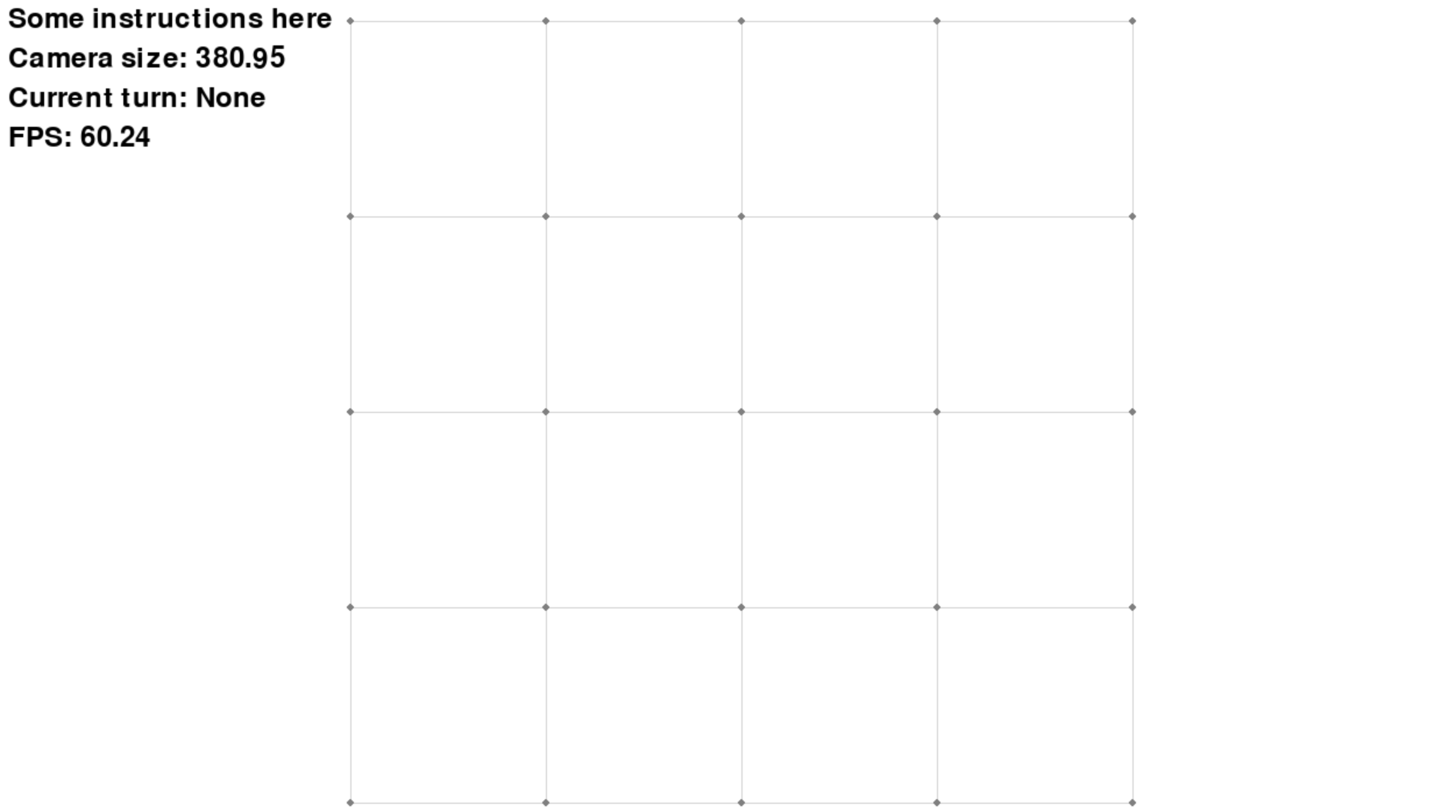

A larger n×n grid visualization with the size defined in config.py
Final changes in the files can be found in snippets/visualizing_a_grid
Creating Agents¶
GAMMS provides a specialized agent class that is used to create agents in the simulation. The agents are limited to the graph and can only move along the edges of the graph. The ctx.agent.create_agent call allows us to define an agent in the simulation. The agent needs to have a unique name along with information about where it is at the start of the simulation.
Adding the following code to the game.pyfile before the while loop, it will create an agent at the start of the simulation:
The start_node_id parameter is the id of the node where the agent will start. The agent will be created at the node with id 0. For making the agent visible in the simulation, we need to also define a visualization for the agent. The agent visualization is created using the set_agent_visual method of the visual engine.
# Create the agent visualization
# set the agent visualization with name 'agent_0', color red and size 10
ctx.visual.set_agent_visual(name='agent_0', color=(255, 0, 0), size=10)
You will notice that the agent is not doing anything in the simulation and is just sitting at the start node. The agent is not moving because we have not defined any behaviour for the agent. Let's try to first get human input to move the agent around. The visual engine provides a way to get user input while displaying possible actions on the screen. We need to edit the while loop to get user input:
step_counter = 0 # initialize the step counter to 0
while not ctx.is_terminated(): # run the loop until the context is terminated
step_counter += 1 # increment the step counter by 1
for agent in ctx.agent.create_iter():
# Get the current state of the agent
state = agent.get_state() # get the state of the agent
# Get human input to move the agent
node = ctx.visual.human_input(agent.name, state)
state['action'] = node
agent.set_state() # set the state of the agent
ctx.visual.simulate() # Draw loop for the visual engine
if step_counter == 20:
ctx.terminate() # terminate the context after 20 steps
If you copy the code and replace the while loop in the game.py file with this code, the simulation will crash. This is because we have not defined any way for the agent to sense the environment. The agent can technically move blindly but to show the possible actions, the agent needs to know what the possible actions are. To do this, we need to add a sensor to the agent. Particularly, human input is tied to the NeighborSensor and it is reuqired to be able to support taking inputs from the user. Before going through how to add a sensor, let's first understand the changes we made to the while loop. After that, we will go through a simple example of how to add a sensor to the agent, and see how it works.
We have replaced the time based termination to a counter based termination criteria. This is a simple way to simulate steps in a game. It also allows a flexible amount of time to be spent on each step. The next thing we are doing is getting the state of the agent. The state of the agent is a dictionary that contains information about the agent. The get_state method of the agent returns the state of the agent. We are then using the human_input method of the visual engine to get user input for the agent. The human_input method takes the name of the agent and its state as arguments and returns the node id where the agent should move. We are then updating the state of the agent with the action taken by the user. The set_state method of the agent sets the state of the agent. The important part is that the agent movement is tied to the action key in the state dictionary.
Let's now add the NeighborSensor to the agent. The NeighborSensor is a sensor that senses the neighbors of the agent. It is used to get the possible actions for the agent. The NeighborSensor is created using the create_sensor method of the agent. The create_sensor method takes the name of the sensor and its type as arguments. The type of the sensor is gamms.sensor.NeighborSensor. We will add the following code to the game.py file after creating the agent:
# Create a neighbor sensor
ctx.sensor.create_sensor(sensor_id='neigh_0', sensor_type=gamms.sensor.SensorType.NEIGHBOR)
# Register the sensor to the agent
ctx.agent.get_agent('agent_0').register_sensor(name='neigh_0', sensor=ctx.sensor.get_sensor('neigh_0'))
There are two parts to this code. The first part creates the sensor and the second part registers the sensor to the agent. The create_sensor method of the context creates a sensor with the given id and type. The register_sensor method of the agent registers the sensor to the agent. When the get_state method of the agent is called, the sensor information is updated and added to the state of the agent. The human_input method of the visual engine uses this information to show the possible actions for the agent. You will see that the agent is highlighted and you can see some numbers on the nearby nodes. The correspoding number can be pressed on the keyboard to move the agent to that node. The agent will move to the node and you can see the agent moving around the grid.

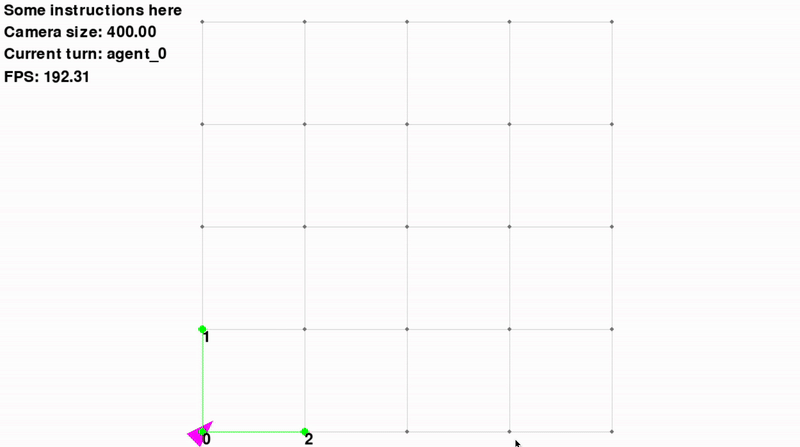

Agent with NeighborSensor showing numbered actions for player input
The maximum number of neighbors that can be handled by human input method is 10. The restriction is only for the human input method and not the sensor itself. The sensor can handle any number of neighbors. The human input method will only show the first 10 neighbors and the rest will be ignored. The human input method will also not show the neighbors if there are more than 10 neighbors. This is a limitation of the current implementation and will be fixed in future releases.
Now that we have a base idea of how to add a single agent, let us try to generalize to two agent teams that we can control. Let us make a Red team and a Blue team, each with 5 agents. The base idea is to do multiple calls to the create_agent method using a loop. To make it clean, let us shift some of the configurations to config.py file.
import gamms
VIS_ENGINE = gamms.visual.Engine.PYGAME # visual engine to use
GRID_SIZE = 20 # size of the grid
SIM_STEPS = 120 # NUMBER OF STEPS IN THE SIMULATION
RED_TEAM_AGENTS = 10 # NUMBER OF AGENTS IN THE RED TEAM
BLUE_TEAM_AGENTS = 10 # NUMBER OF AGENTS IN THE BLUE TEAM
graph_vis_config = {
'width': 1980, # width of the graph visualization
'height': 1080, # height of the graph visualization
}
sensor_config = {}
for i in range(RED_TEAM_AGENTS + BLUE_TEAM_AGENTS):
sensor_config[f'neigh_{i}'] = {
'type': gamms.sensor.SensorType.NEIGHBOR, # type of the sensor
}
agent_config = {}
for i in range(RED_TEAM_AGENTS):
agent_config[f'agent_{i}'] = {
'meta': {'team': 0}, # team of the agent
'sensors': [f'neigh_{i}'], # sensors of the agent
'start_node_id': i, # starting node id of the agent
}
for i in range(RED_TEAM_AGENTS, RED_TEAM_AGENTS + BLUE_TEAM_AGENTS):
agent_config[f'agent_{i}'] = {
'meta': {'team': 1}, # team of the agent
'sensors': [f'neigh_{i}'], # sensors of the agent
'start_node_id': 400-1-i, # starting node id of the agent
}
agent_vis_config = {}
for i in range(RED_TEAM_AGENTS):
agent_vis_config[f'agent_{i}'] = {
'color': (255, 0, 0), # color of the agent
'size': 10, # size of the agent
}
for i in range(RED_TEAM_AGENTS, RED_TEAM_AGENTS + BLUE_TEAM_AGENTS):
agent_vis_config[f'agent_{i}'] = {
'color': (0, 0, 255), # color of the agent
'size': 10, # size of the agent
}
There are many things to note in the above code. First, we have made the grid size larger to accommodate the agents and the simulation time is now in terms of steps. The number of agents in each team is also defined in the config file. The sensor_config dictionary contains the sensor configuration for NeighborSensor for each agent. The agent_config dictionary contains the agent configuration for each agent. The meta key is extra information about the agent that can be used during initialization. The sensors key is a list of sensors that are registered to the agent. This way, we do not need to register the sensors to the agent manually. We are storing the each agent's visualization configuration in the agent_vis_config dictionary. With all these dictionaries, we can now easily define the agents and their sensors in the game.py file like this:
# Create all the sensors
for name, sensor in config.sensor_config.items():
ctx.sensor.create_sensor(name, sensor['type'], **sensor)
# Create all the agents
for name, agent in config.agent_config.items():
ctx.agent.create_agent(name, **agent)
# Create all agents visualization
for name, vis_config in config.agent_vis_config.items():
ctx.visual.set_agent_visual(name, **vis_config)

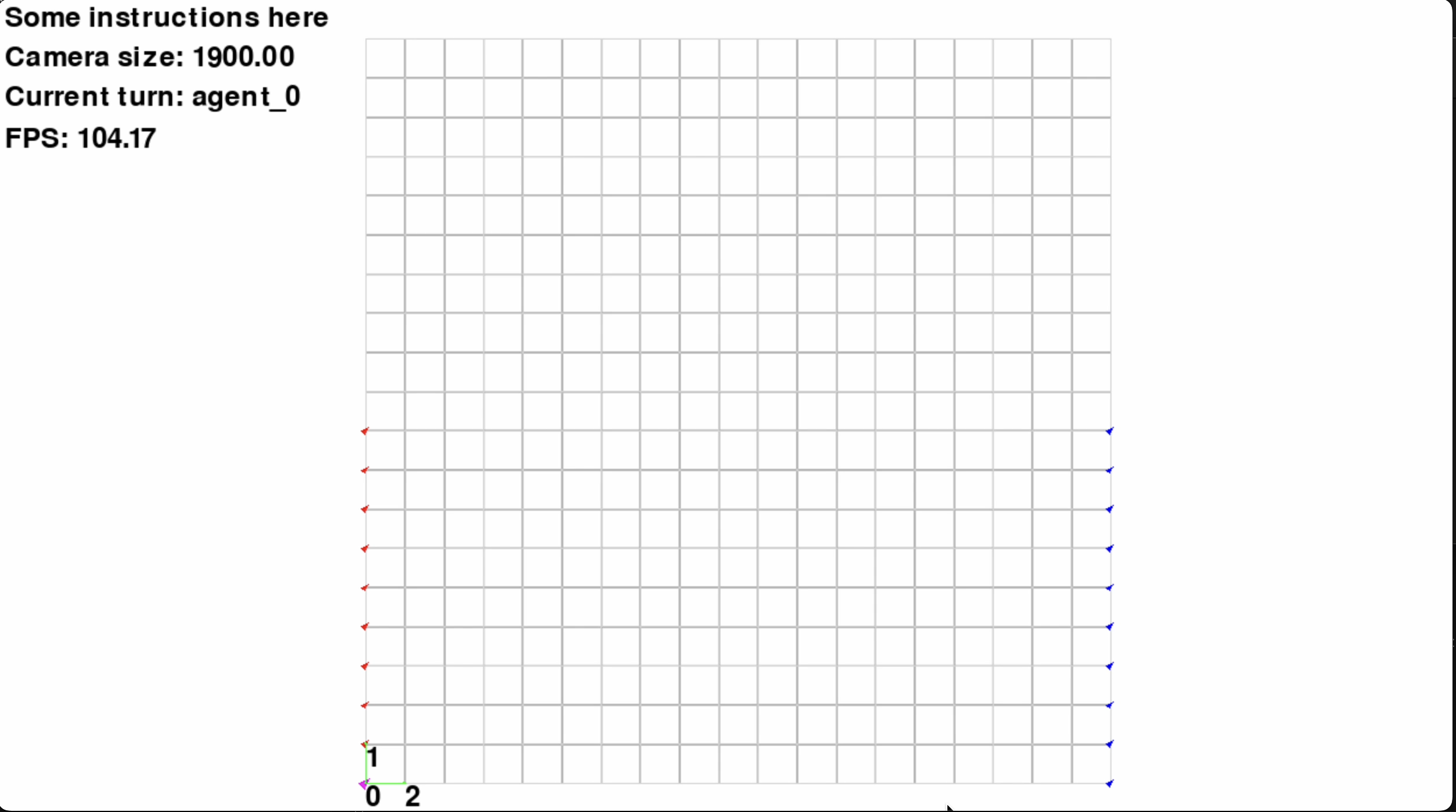

Red and blue team agents positioned on the grid according to their configurations
We have switched the sequence of sensor definition and agent creation. The sensors are created first so that the when the create_agent method is called, the method tries to automatically register the sensors to the agent. But if the sensors are not created, the agent will not be able to register the sensors. So, we need to create the sensors first and then create the agents. We can always do the registration manually but it is easier to do it directly.
Final changes in the files can be found in snippets/creating_agents
Creating Scenario Rules¶
Now that we have set up the agents and the environment, we need to define the rules of the scenario. We already have implcitly defined a rule by defining the termination based on turn count. Rules in GAMMS are defined directly in the game file. These rules are simple definitions that can directly mutate the game state. An easy way to define a rule is to create a function that takes the context as an argument and do condition checks. The way these rules actually come into play is by actually calling the function in the main loop, giving full control in which order the rules apply.
Let us try to implement the following rules:
- The game will run for atleast 120 steps and at most 1000 steps.
- If two agents of opposite teams are on the same node, they will be reset to their starting positions. Lets call this the tag rule.
- If a blue agent reaches any red agents' starting position, blue team will get a point. Lets call this the capture rule.
- The capture applies for red agents too. If a red agent reaches any blue agents' starting position, red team will get a point.
- On a capture, the agent will be reset to its starting position.
- On every capture, the maximum number of steps will be increased by 10 steps (added to 120 with a cap of 1000).
- Maximum point team wins.
def termination_rule(ctx):
if step_counter >= max_steps or step_counter >= config.MAX_SIM_STEPS:
ctx.terminate()
The above rule is a simple termination rule we can use to implement the conditioned termination criteria. We have max_steps as a global variable which we can set to 120 at the start of the simulation. The termination_rule function checks if the step counter is greater than or equal to the maximum number of steps or the maximum simulation steps. We can add MAX_SIM_STEPS to the config.py file and set it to 1000. The termination_rule function will be called in the main loop to check if the simulation should be terminated.
To write the tag rule, we need to check if two agents from opposite teams are on the same node. We have the team in meta attribute in agent configuration.
red_team = [name for name in config.agent_config if config.agent_config[name]['meta']['team'] == 0]
blue_team = [name for name in config.agent_config if config.agent_config[name]['meta']['team'] == 1]
red_start_dict = {name: config.agent_config[name]['start_node_id'] for name in red_team}
blue_start_dict = {name: config.agent_config[name]['start_node_id'] for name in blue_team}
def tag_rule(ctx):
for red_agent in red_team:
for blue_agent in blue_team:
ragent = ctx.agent.get_agent(red_agent)
bagent = ctx.agent.get_agent(blue_agent)
if ragent.current_node_id == bagent.current_node_id:
# Reset the agents to their starting positions
ragent.current_node_id = red_start_dict[red_agent]
bagent.current_node_id = blue_start_dict[blue_agent]
ragent.prev_node_id = red_start_dict[red_agent]
bagent.prev_node_id = blue_start_dict[blue_agent]
The tag_rule function checks if two agents from opposite teams are on the same node. If they are, the agents are reset to their starting positions. The starting positions are stored in the red_start_dict and blue_start_dict dictionaries. The current_node_id attribute of the agent is used to get the current position of the agent. The current_node_id attribute is updated to the starting position of the agent. The prev_node_id attribute is used to store the previous position of the agent. We also reset it as we are completely resetting the agent to its starting condition.
The capture_rule function is similar to the tag_rule function. It checks if a blue agent reaches any red agents' starting position. If it does, the blue team gets a point. The same applies for red agents too. The capture_rule function looks like this:
red_team_score = 0
blue_team_score = 0
max_steps = 120
def capture_rule(ctx):
global max_steps
global red_team_score
global blue_team_score
for red_agent in red_team:
agent = ctx.agent.get_agent(red_agent)
for val in blue_start_dict.values():
if agent.current_node_id == val:
# Red team gets a point
red_team_score += 1
# Reset the agent to its starting position
agent.current_node_id = red_start_dict[red_agent]
agent.prev_node_id = red_start_dict[red_agent]
max_steps += 10
for blue_agent in blue_team:
agent = ctx.agent.get_agent(blue_agent)
for val in red_start_dict.values():
if agent.current_node_id == val:
# Blue team gets a point
blue_team_score += 1
# Reset the agent to its starting position
agent.current_node_id = blue_start_dict[blue_agent]
agent.prev_node_id = blue_start_dict[blue_agent]
max_steps += 10

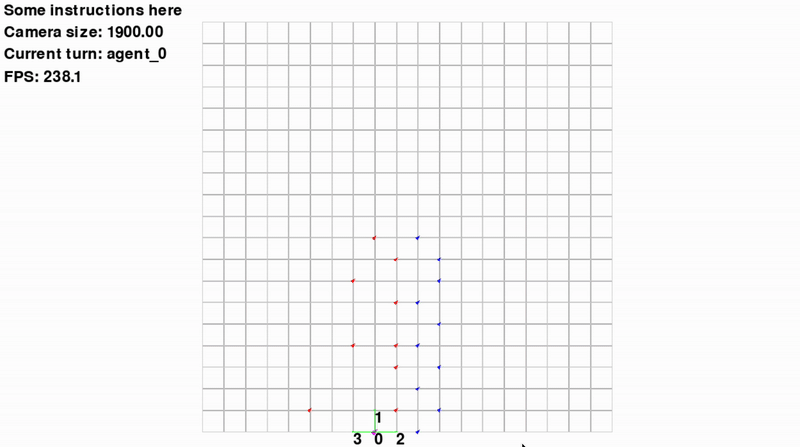

Gameplay showing the tag and capture rules in action
The capture_rule function checks if a blue agent reaches any red agents' starting position. If it does, the blue team gets a point. The same applies for red agents too. We are updating the red_team_score and blue_team_score variables to keep track of the score. The max_steps variable is updated to increase the maximum number of steps by 10 on every capture from either team.
Let's put it all in the game.py file and update the main loop to call the rules.
import gamms
import config
# ...
create_grid(graph, config.GRID_SIZE)
# ...
red_team = [name for name in config.agent_config if config.agent_config[name]['meta']['team'] == 0]
blue_team = [name for name in config.agent_config if config.agent_config[name]['meta']['team'] == 1]
# ...
def termination_rule(ctx):
if step_counter >= max_steps or step_counter >= config.MAX_SIM_STEPS:
ctx.terminate()
# ...
step_counter = 0 # initialize the step counter to 0
while not ctx.is_terminated(): # run the loop until the context is terminated
step_counter += 1 # increment the step counter by 1
for agent in ctx.agent.create_iter():
# Get the current state of the agent
state = agent.get_state() # get the state of the agent
# Get human input to move the agent
node = ctx.visual.human_input(agent.name, state)
state['action'] = node
agent.set_state() # set the state of the agent
ctx.visual.simulate() # Draw loop for the visual engine
capture_rule(ctx) # check capture rule
tag_rule(ctx) # check tag rule
termination_rule(ctx) # check termination rule
The rules are called after the agent state updates. Note how the capture rule is called before the tag rule. The game rules are actually ambiguous here. Do we first resolve the tag rule and then the capture rule or vice versa? The way we have implemented it, the capture rule is called first and then the tag rule. The example also highlights that the order of rule resolution is important and writing it in this way allows to figure out ambiguities in the rules.
Final changes in the files can be found in snippets/creating_rules
